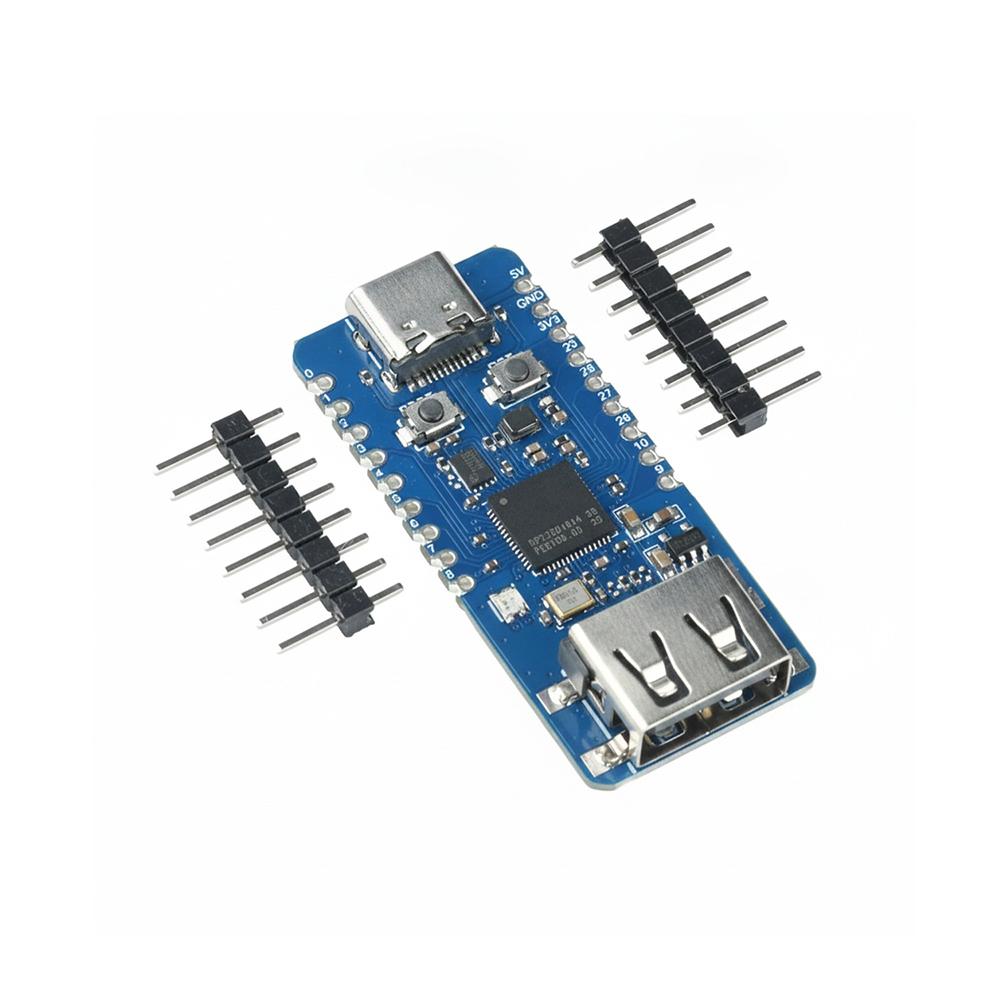

RP2350-USB-A Mini Development Board Microcontroller Processor Based for Raspberry Pi Pico 2 RP2350A Type C

Quantity : 1 High-concerned chemical : none is_d : Yes Type : Module Brand Name : diymore Origin : Mainland China Condition : New

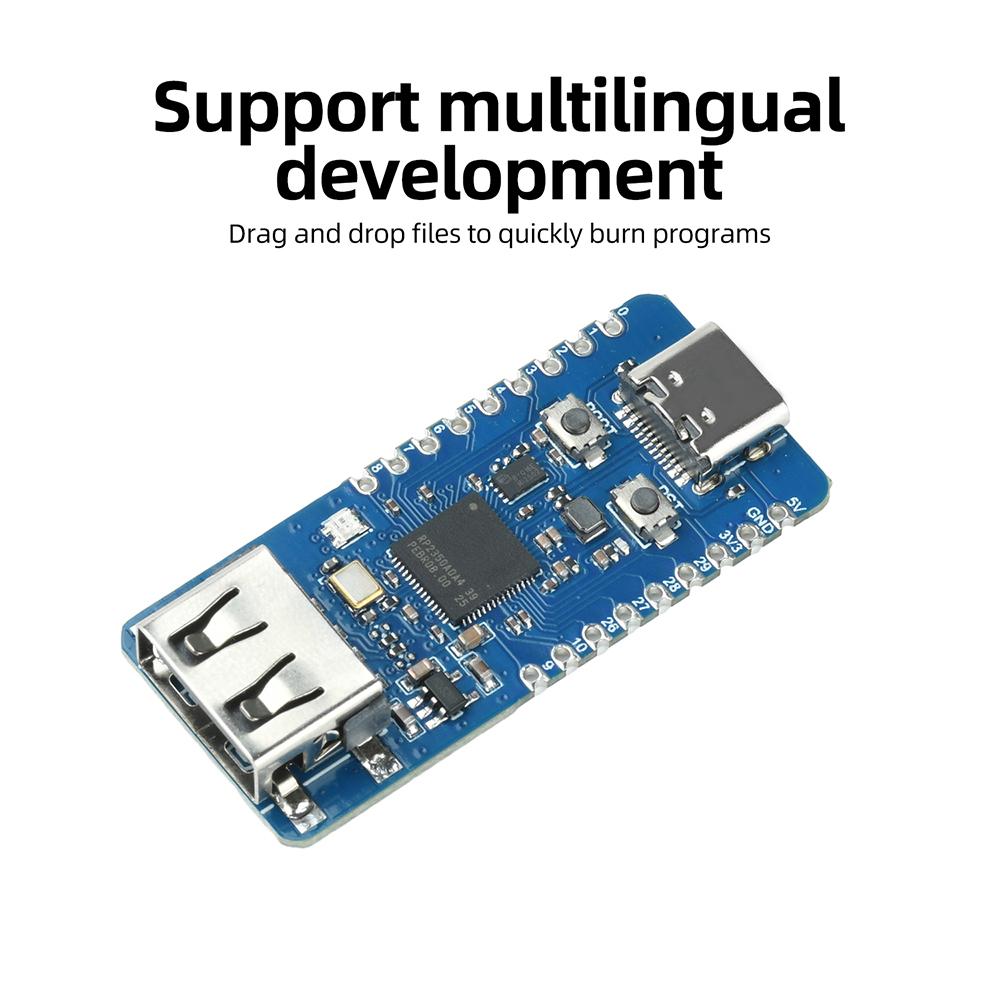

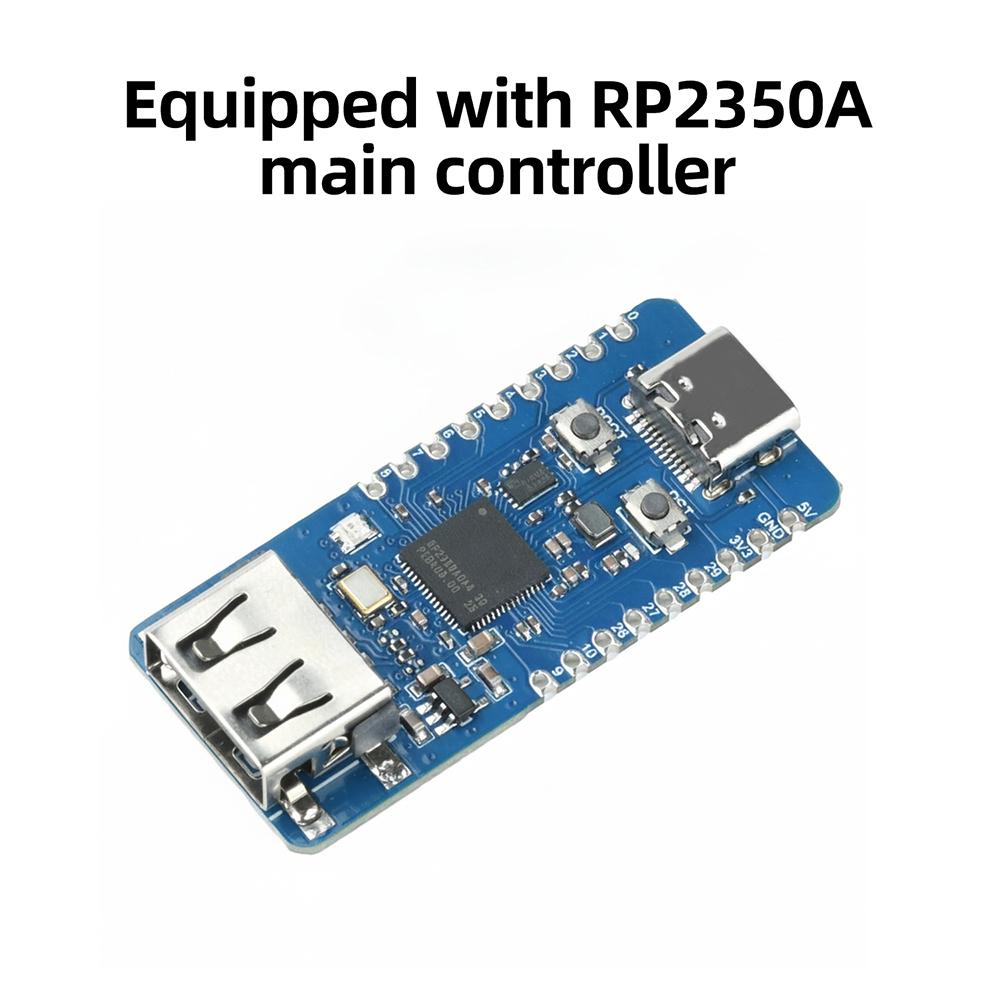

Product Features: 1. Equipped with RP2350A controller and onboard W25Q16 high-capacity Flash 2. Extract all IO, equipped with BOOT and RST function buttons 3. Type-C power supply, with built-in USB-A expansion interface for easy debugging 4. Support multilingual development, drag and drop files to quickly burn programs 5. Half hole miniaturization design, suitable for embedded control project development

Overview This RP2350_V2 USB expansion development board is developed based on RP2350A, with a small-sized FLASH-W25Q16JVUXIQ onboard. It uses a Type-C port, an IO port, and onboard BOOT and RST keys. There is also one USB expansion port onboard for easy user debugging. It supports various development environments such as C, C++, Micro Python, Ard, etc. The module can be recognized as a large capacity storage through USB for program burning.

Features: IO port output and onboard BOOT and RST keys FLASH-W25Q16JVUXIQ with small size and large capacity onboard Supports multiple development environments such as C, C++, Micro Python, Ard, etc Designed with half hole technology, it can be embedded and combined into various products Support computer USB recognition, copy the program into a large capacity storage device to achieve burning Onboard 1 USB expansion port

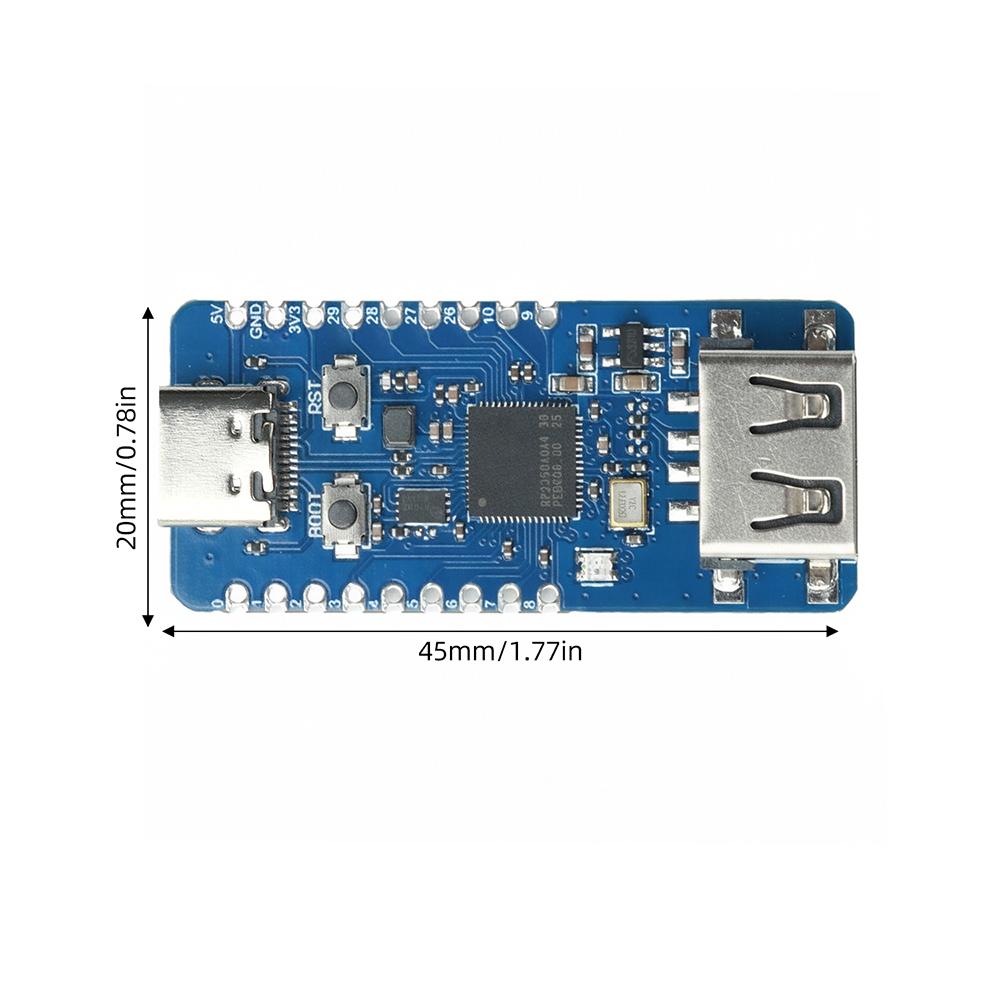

Product Parameters: Interface: Type-C port, USB A port RESET button: Reset button BOOT button: Press it during reset to enter the burning module FLASH with small size and large capacity: W25Q16JVUXIQ MCU：RP2350A（LQFN-60） RGB lights, GPIO16 USB-A interface, GPIO12,GPIO13 Voltage regulator chip GPIO output port Product size: 45mm * 20mm

Product includes: 1X development board 2X needle arrangement

label:yes
