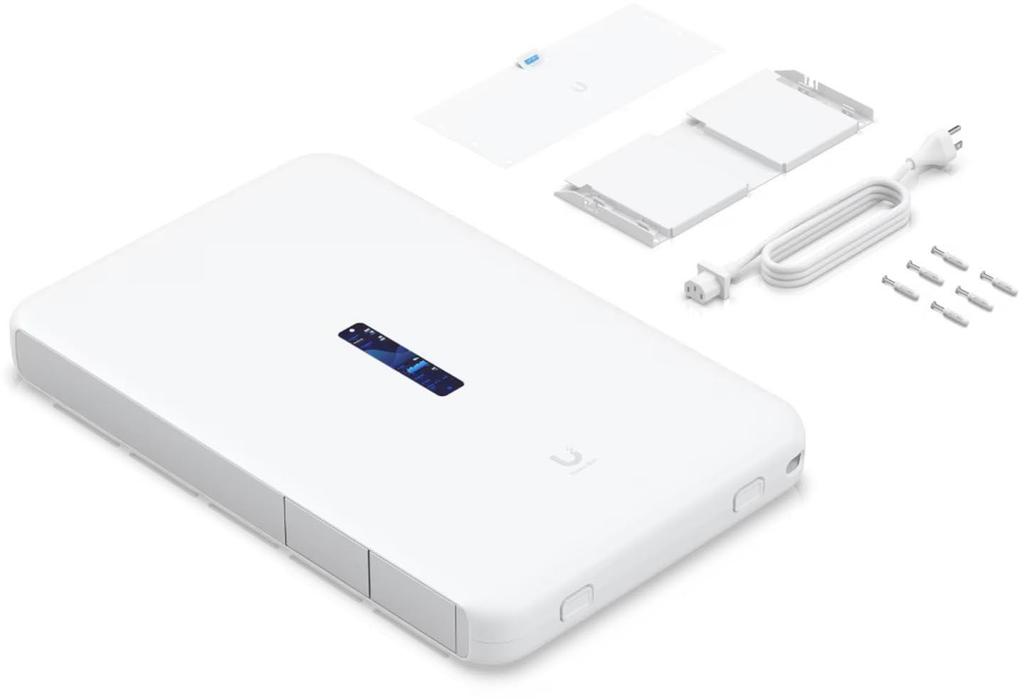

Ubiquiti UniFi Dream Wall UDW WiFi 6 Gateway with 10G SFP+

Ubiquiti UniFi Dream Wall UDW WiFi 6 Gateway with 10G SFP+Ubiquiti UniFi Dream Wall UDW WiFi 6 Gateway with 10G SFP+Ubiquiti UniFi Dream Wall UDW WiFi 6 Gateway with 10G SFP+Ubiquiti UniFi Dream Wall UDW is a WiFi 6 gateway designed for network management with integrated wireless connectivity, routing, switching and UniFi system support. It combines a wall-mounted network device with advanced wired and wireless interfaces in a single solution.

The device operates simultaneously in the 2.4 GHz and 5 GHz bands using the IEEE 802.11ax WiFi 6 standard. Wireless performance is supported by 4x4 MU-MIMO and beamforming, with throughput of up to 2.4 Gb/s on the 5 GHz band and 300 Mb/s on the 2.4 GHz band.

Wireless standard: IEEE 802.11ax WiFi 6

Wireless bands: 2.4 GHz and 5 GHz operating simultaneously

5 GHz wireless configuration: 4x4 MU-MIMO, up to 2.4 Gb/s

2.4 GHz wireless configuration: 2x2 MIMO, up to 300 Mb/s

Wireless technologies: MU-MIMO and beamforming

For wired networking, the UDW provides routing performance of 3.5+ Gb/s and multiple Ethernet interfaces. The unit includes 17 Gigabit Ethernet RJ45 LAN ports, including ports with PoE++, PoE+ and PoE support, as well as a dedicated 10 Gb/s SFP+ LAN slot.

LAN ports: 17x Gigabit Ethernet RJ45

PoE ports: 4x PoE++, 4x PoE+ and 4x PoE

LAN uplink: 1x SFP+ 10 Gb/s

WAN ports: 1x SFP+ 10 Gb/s and 1x 2.5 Gigabit Ethernet RJ45

Routing performance: 3.5+ Gb/s

Network management is supported by the UniFi operating system and UniFi applications. A 4.7-inch colour LCM touchscreen provides access to management functions, while intuitive installation and configuration support the setup of multiple advanced features.

The gateway includes 128 GB of integrated SSD storage and a pre-installed 512 GB microSD card. It also features a microSD card slot supporting cards with a capacity of at least 128 GB, together with an integrated 550 W power supply.1233.11UBIQUITI
