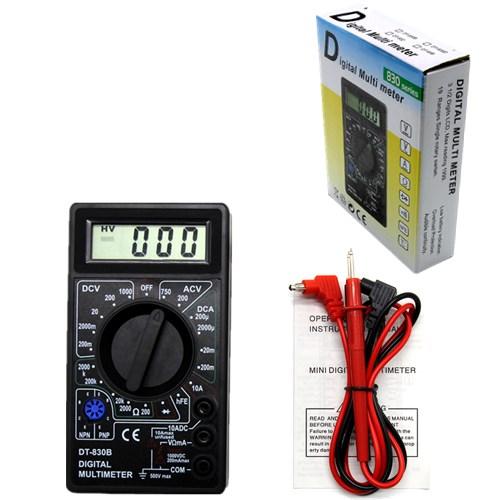

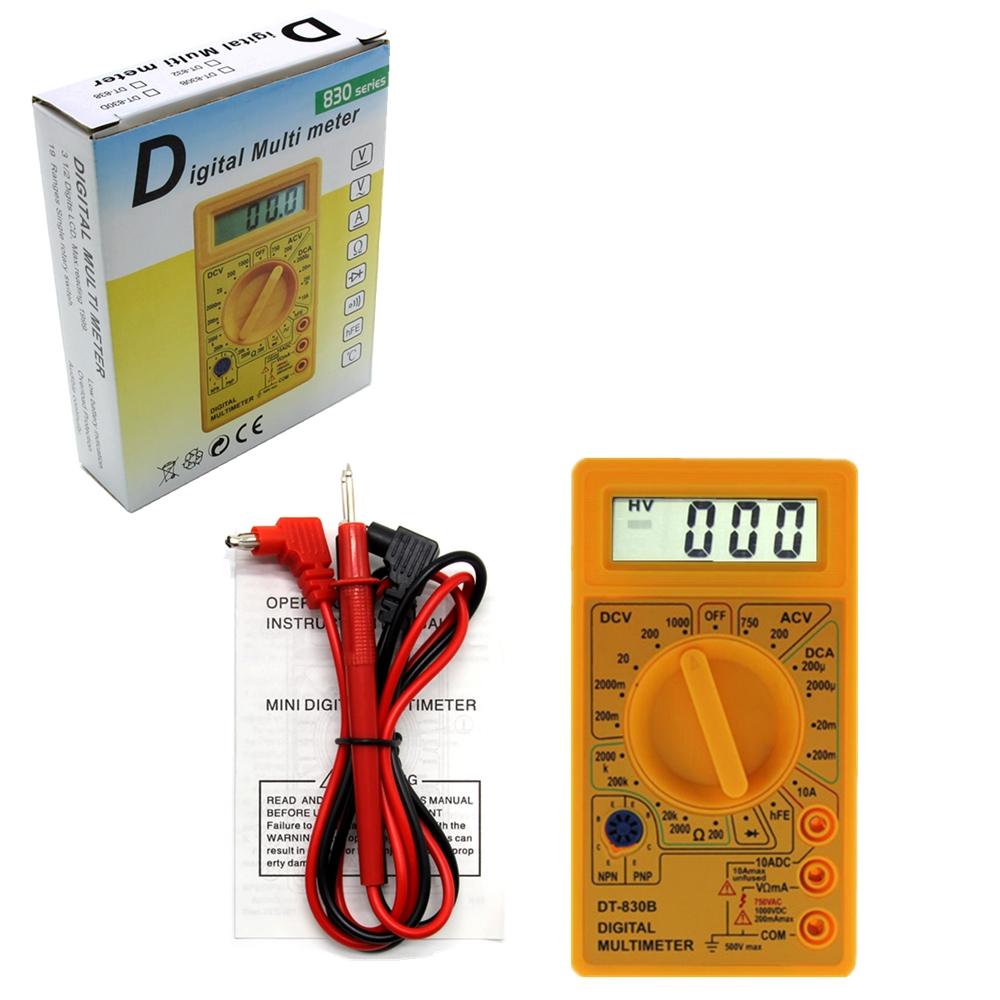

LCD Digital Multimeter AC/DC 750/1000V Digital Mini Handheld Multimeter For Voltmeter Ammeter Ohm Tester Meter With Probe DT830B

Semi-finishedproduct : No Battery Included : no High-concerned chemical : none Operating Mode : Manual Range Measuring Capacitance Range : - Operating Temperature : - DIY Supplies : Electrical Measuring Resistance Range : 200 Ohm-2000K Ohm Origin : Mainland China Model Number : DT-830B / DT830B Measuring Inductance Range : 200 ohm-2000K ohm Brand Name : HESAI Dimensions : 123*67*20mm DC Current : 2000ua 1ua AC Current : - DC Voltage : 200 mV 100 Display Type : Digital Display AC Voltage : 200V 100mv

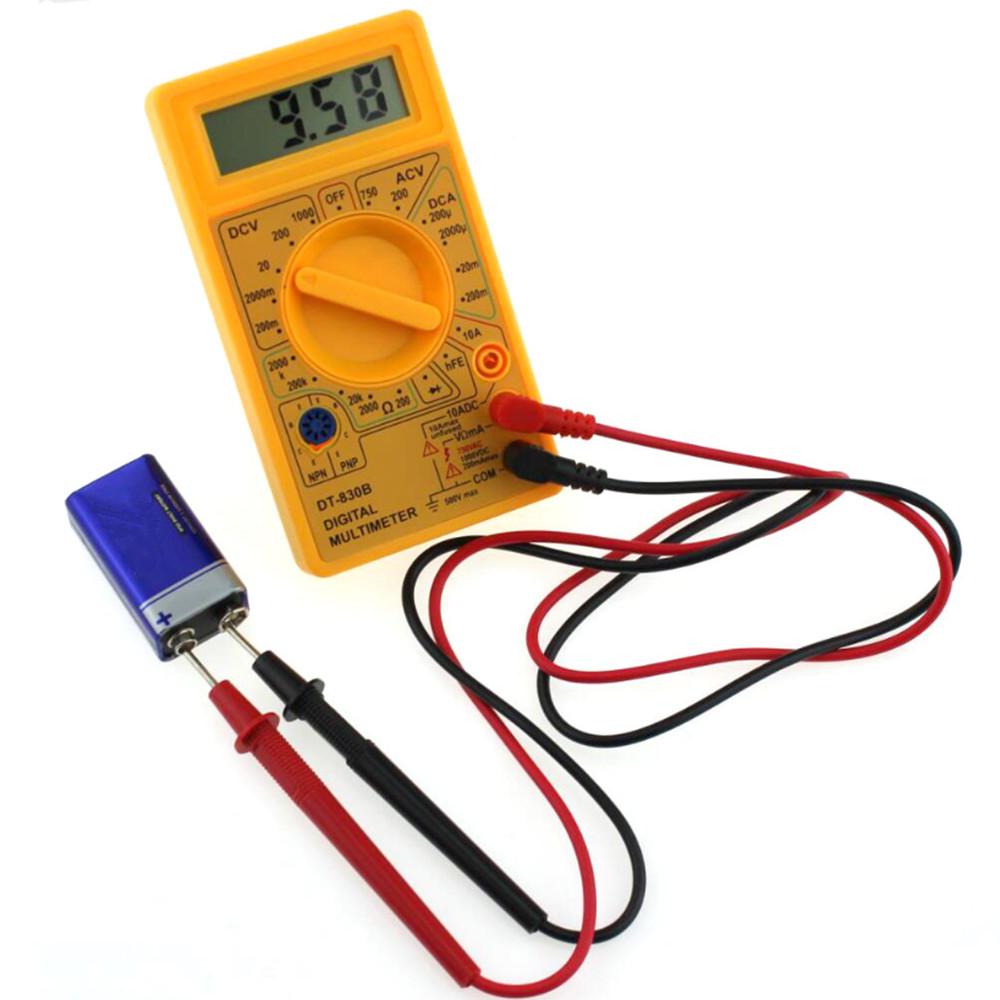

A practical tool for electrician use. It is easy to operate and the readings is indicated on on the screen. It can be used to overhaul all kinds of circuit boards. It is also ideal educational instrument for students. 3 1/2 digits, 7segment, 0.5 "high LCD Display. Max display: 1999, Auto polarity display. Small and compact design. Overload protection on all ranges. Sampling 2 ~ 3 times readings per second Diode assembly test / Temperature test / Transistor hFE test. Low battery voltage indication. Model: DT-830B Measuring range: Max AC Current: 10A Max AC Voltage range: 1000V Max DC Voltage range: 750V Resistance Measurement: 200 Ohm-2000K Ohm range Temperature Test: -40-1000 ° Power Supply: 9V Battery (Not Included Here) Color: Yellow Size: Approx. 123 x 67 x 20mm / 4.84 x 2.63 x 0.78 \ '\ (L * W * H) Scale degree & Accuracy: DC voltage: 200 mV 100 uv ± (0.5% + 2) 2000mv 1mv 20v 10mv 200v 100mv 1000v 1v ± (0.8% + 2) AC voltage: 200V 100mv ± (1.2% + 10) 750v 1v DC current: 2000ua 1ua ± (1% + 2) 20ma 10ua 200ma 100ua ± (1.2% + 2) 10a 10ma ± (2% + 2) Resistance: 200Ω0.1Ω ± (0.8% + 2) 2000Ω1 20kΩ10 200kΩ100 2000kΩ1000Ω ± (1% + 2) Temperature: -40-1000 ° 1 ° ± 3% 1 x Digital Multimeter 2 x Temperature Probes 1 x User Manual If need more parts Pls clickand submit the order.If you need more quantity,Pls contact us. If you mind the price,If some parts can not find out in my store,Pls contact us,we still have many parts don't published.We will send the  latest version of product, the upgraded function. It may has different shape or color. If you can't agree, pls don't buy.Please don't open dispute and leave any bad feedback, if you have any question, feel free to contact us,we will give you satisfactory answer. Hope you understand us, thank you in advance. label:yes
